Wire
Strapping Machine
SMC

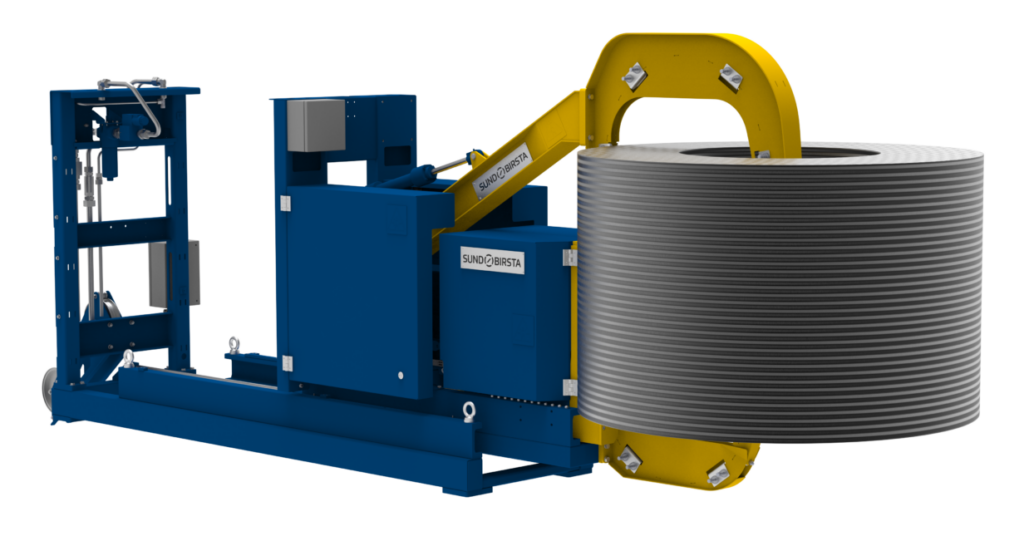

The SMC is designed with welding or punching unit. It is for strapping of small and medium sized wire rod coils, bar in coil and spooled coils in hot or cold environment. The SMC is designed to operate in hard conditions.
Original design – proven technology
The SMC is a reliable machine that is suited for harsh environment. It is designed to resist extreme high coil temperature, up to 800 °C.
Long lifetime
The SMC is a robust and reliable machine with a long lifetime of spares and wear parts.
Customizable
The SMC is designed to meet customers requirements. You can choose the strapping head after your needs and with the optional tag marking system it makes the machine customizable for the customer.
Low operating cost
The SMC machine have low operating cost.
Safety Solutions
Sund Birsta provides customized
safety solutions that comply with applicable standards and meet your specific requirements.
Support
Our dedicated Customer Service team ensures you receive the support you need, when you need it. Your production is our priority.
Remote service
The SMC is compatible with our IoT solution, enabling quick and solution-oriented remote support from Sund Birsta’s experienced engineers.
Operation

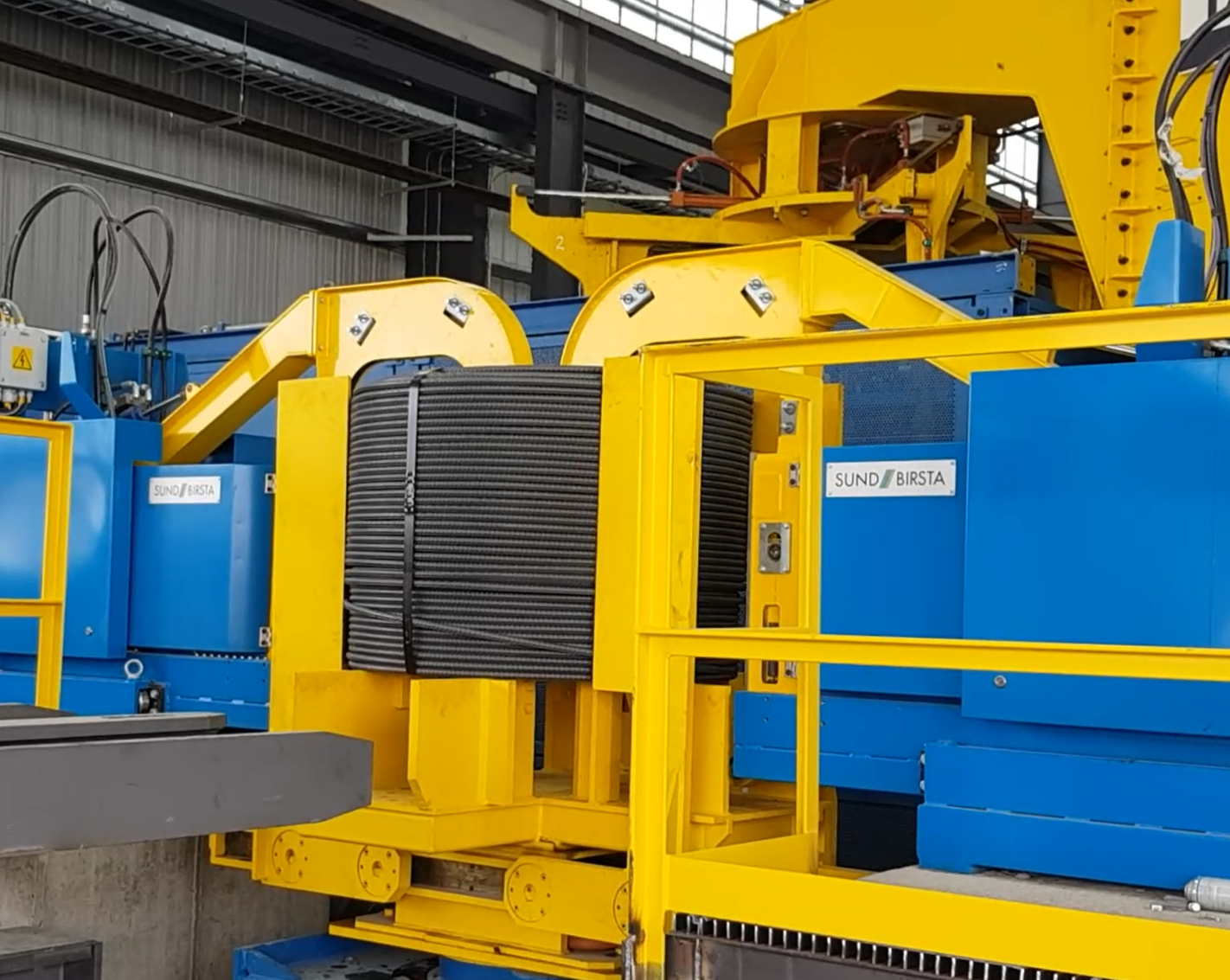

As a coil arrives to the strapping position, the strapping machine is in it’s rear position with strap guides open. Upon signal, it moves forward toward the coil and closes the strap guides through the eye of the coil. Strap is fed through the strap guides, and the Strapping Unit clamps the strap. The strap is then stretched around the coil, and the Strapping Unit performs the seal and cuts the strap. The coil can now be rotated and another strap can be applied, or the coil may be further conveyed.
SMC
Features

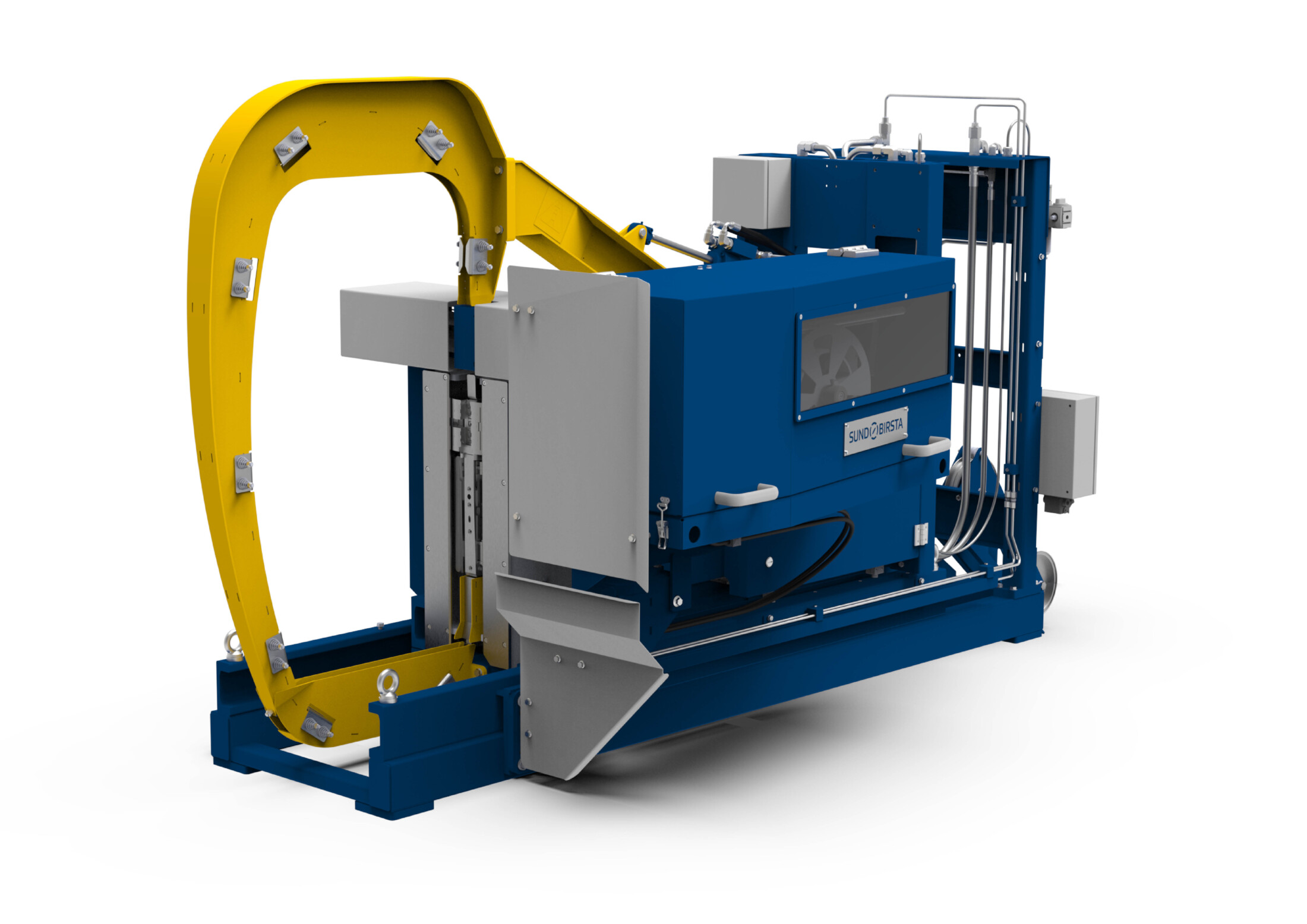

Tag marking system
The SMC can be equipped with a tag marking system which applies a tag to the strap containing data about your coil. The data can be customized to your specific needs.

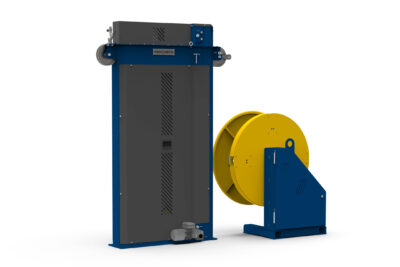

Next generation Accumulator
Faster, safer and more ergonomic. Discover our new accumulator and improve your productivity.
| Technical Specification | SMC |
|---|---|
| Length (mm) | 2850-3500 |
| Width (mm) | 830-1170 |
| Height (mm) | 1550-1850 |
| Strap width (mm) | 32 |
| Coil OD (mm) | 950-1600 |
| Coil ID (mm) | Min. 700 |
| Coil height (mm) | 600-1100 |
| Strapping time (s) | 23,5-36,5 |
| Net weight (kg) | 1260-1580 |
SMC
Strapping heads
SBHX5
- Sealless mechanical joint
- For 32 mm steel straps
- Retains 80% of the steel strap’s tensile strength
- Wear parts have a lifespan of up to 80,000 cycles
