Cold Coil
Strapping Machine
The SMB-CC Strapping Machine applies circumferential straps to coils on conveying systems where the coil-eye is oriented parallel to the transport direction. A highly customizable machine, to fit any site-specific conditions.
Customizable machine
The machine is designed to apply seals on the coil in cooler conditions. It can be equipped with our Strap Spacer to protect your material. It’s design makes it easy to adapt to your specific needs.
Versatile design
The machine has been designed to fit
various site-specific conditions and
coil variations.
Reliable
Dependable material choices and a
simple yet innovative design makes
this strapping machine very reliable
and low maintenance.
Advanced sealing technology
The machine is equipped with the
seal-less mechanical joint strapping
head SBHX5.
Support
Our dedicated Customer Service team ensures you receive the support you need, when you need it. Your production is our priority.
Remote service
The SMB-CC is compatible with our IoT solution, enabling quick and solution-oriented remote support from Sund Birsta’s experienced engineers.
Safety solutions
Sund Birsta provides customized safety solutions that comply with applicable standards and meet your specific requirements.
Operation

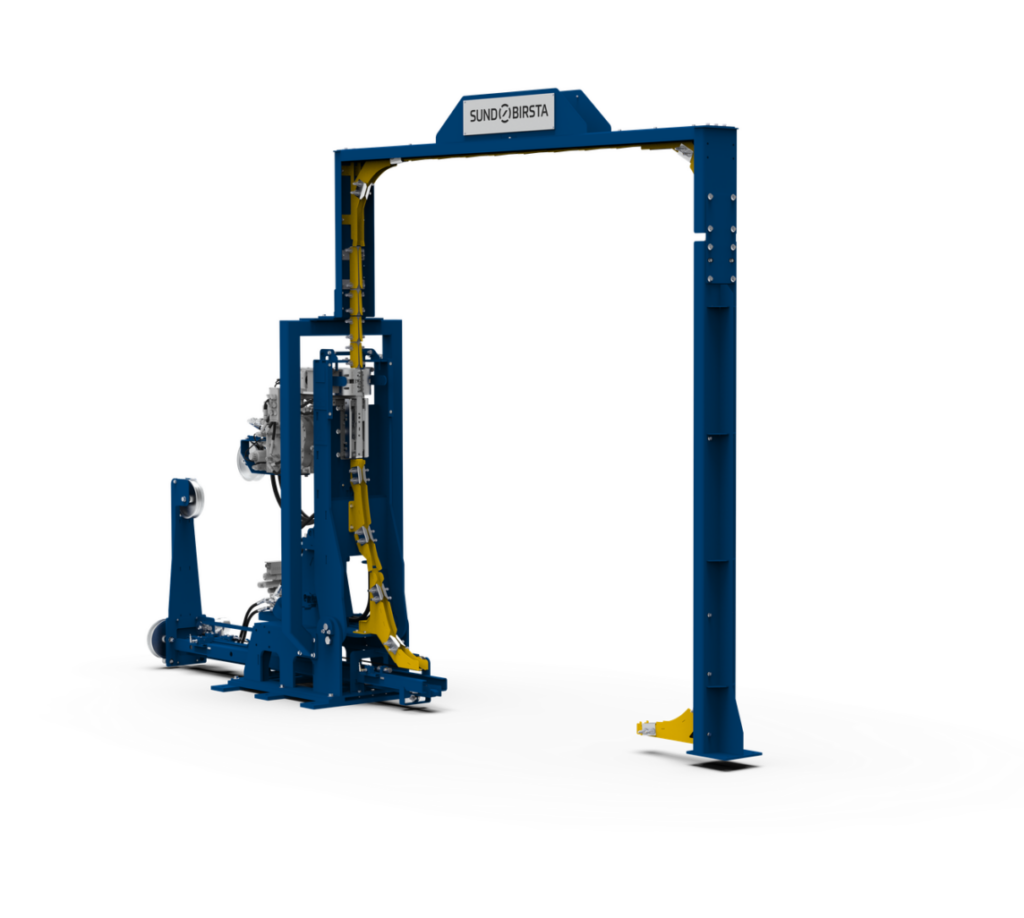

When a coil arrives at the strapping position, the SMB-CC
moves from its home position to the first defined strapping
position and the moveable strap guides connects through the slots in the saddle or conveyor. Strap is fed through the system and into the Strapping Unit. The strap is clamped, and the Strapping Unit moves towards the coil. Once the Strapping Unit has reached the coil, the Feeding Unit pulls back the surplus strap and stretches it tight around the coil. The Strapping Unit performs the seal, cuts the strap, and is raised from the coil. The moveable strap guides retracts and the machine can move to the next strapping position or back to home position.
SMB-CC
Features

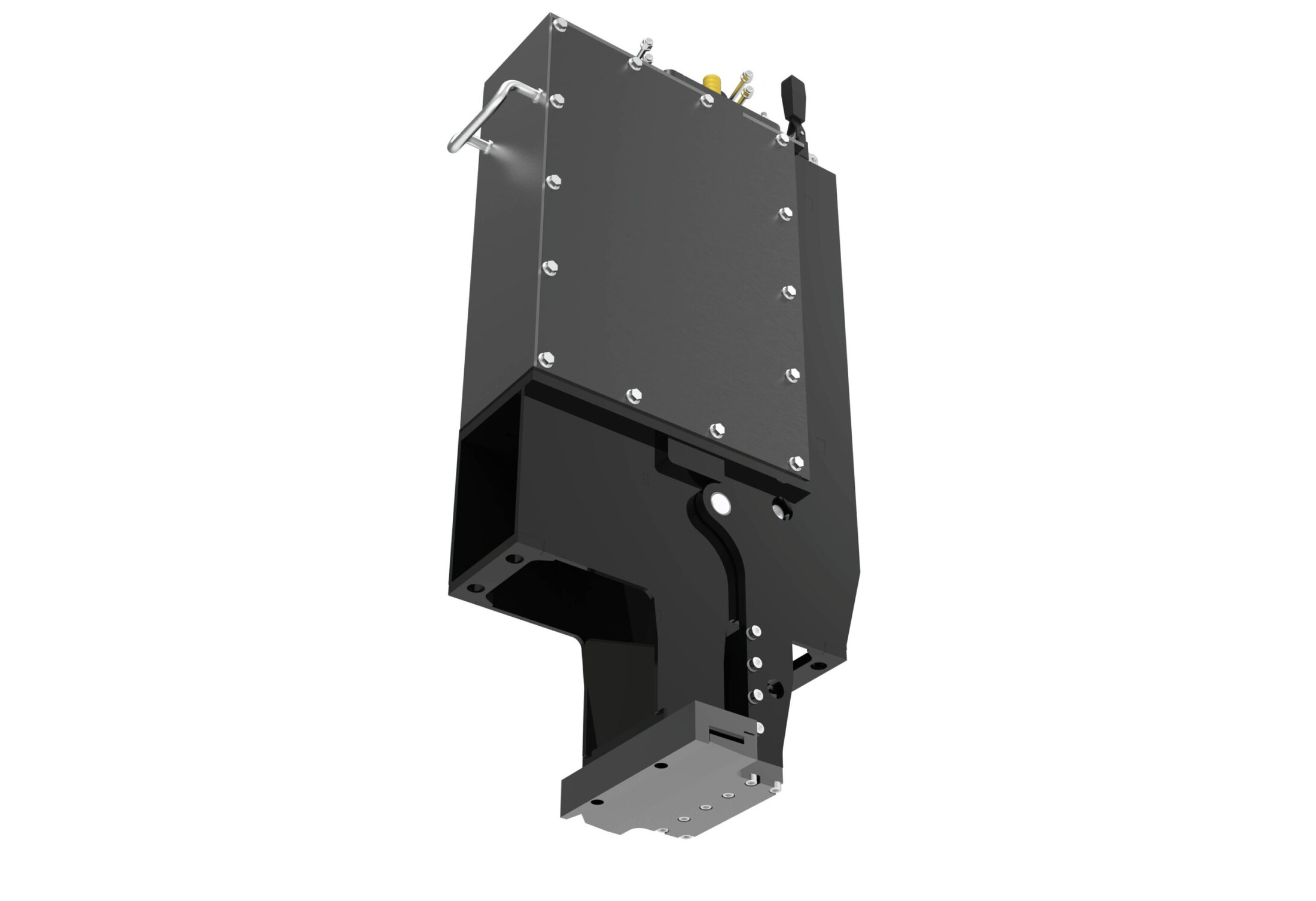

Laser Marking Device
The LMD enables marking on the strap as an integrated
functionality of your strapping machine, ensuring reliable
traceability of your product.
Protecting your material
Our Strap Spacer inserts a PVC plastic string between strap and coil.
Next generation Accumulator
Faster, safer and more ergonomic. Discover our new accumulator.
Click here to read more
| Technical Specification | SMB-CC |
|---|---|
| Material temperatures | Up to 300 °C |
| Sealing technology | Mechanical |
| Strap width | 32 mm |
| Coil sizes | Customizable |
| Number of straps | Customizable |
| IoT compatible | Yes |
SBHX5
- Sealless mechanical joint
- For 32 mm steel straps
- Retains 83% of the steel strap’s tensile strength
- Wear parts have a lifespan of up to 80,000 cycles
